The Smart Air DIY Air Purifier

Who knew clean air could be this simple?

(We were kinda surprised too.)



Effectiveness

Average percent reductions of the Original DIY in 8-hour tests in a 200 sq-ft bedroom.

Purification Speed

Based on an 8 hour test in a 150 sq-ft bedroom.






Does a simple fan and filter actually reduce pollution?



Short answer: Yes!

Long answer: Keep reading



Let’s break down this question into three smaller questions:



1. Is the air coming out of the Smart Air DIY air purifier clean?

2. Is the Smart Air DIY air purifier able to actually clean the air in the entire room?

3. How well does the Smart Air DIY air purifier perform compared to expensive air purifiers?








1. Is the air coming out of the Smart Air DIY air purifier clean?



This is the easiest question to answer, and we do it by holding a Dylos DC1100 Pro particle counter in front of the purifier and watching the numbers drop. Here’s a video of Thomas doing just that:



(Can’t see the video? Watch it on YouTube.)

Conclusion: Yes, air coming out of the purifier is clean.








2. Is that enough to actually clean the air in the entire room?



Answering this question is more difficult because you need a controlled environment (for example, you don’t want to walk in and out of the room during the test), and you need to test the air for a longer period of time. But fortunately for you, Thomas is a huge nerd and does this kind of thing for fun.



To answer this, Thomas set up the particle counter on one side of his 13.5 m2 bedroom and put the DIY filter on the opposite side of the room. Here’s what the DIY did in one hour:



And in an eight-hour test:



The particle counter also gives data on 0.5 micron particles — even smaller than the 2.5 micron reading. Here’s what that looks like over eight hours:

Conclusion: Yes, the clean air from the DIY filter is cleaning the entire room.



For fellow nerds, here are some more details on how the tests were conducted:

The test above was done starting at 11:30 pm on 6/16/2013, when the outside AQI in Beijing was 230 according to the US embassy’s AQI Twitter feed. (The outside air improved the next day, but results were similar on a later test where AQI actually went up slightly from 195 to 202 during the test.)

According to comparisons of our particle counter’s tests of outside to US embassy AQIs, an AQI of 230 would convert to about 2,650 on the PM 2.5 count on the reader. (Remember, the particle counter gives the raw number of particles 2.5 micrometers and above per .01 cubic feet. The US embassy takes mg/m3 and converts that to an AQI. Therefore, the raw numbers are different, but they correlate highly. You can think of this as the difference between measuring attendance at a basketball game by the number of people in the stadium versus the total weight of those people. The two numbers are highly correlated, but not identical.)

Thomas did the test in his bedroom with the doors and windows closed. The room is 13.5 m2, with two windows.

The particle counter tends to take 5-10 minutes to get stable readings, so to be conservative, Thomas gave it about an hour:


The spike at the top was when Thomas entered the room to turn the air purifier on and reset the machine, so it may be the dust he kicked up by walking around. A more stable reading for that time would probably be about 230.

The uptrend prior to turning the filter on may have been because Thomas was running a dehumidifier (which itself has some small filters) in the room before the tests.

Regardless, this data suggests that the effect of the filter was not a confound of calibration.








3. How well does the Smart Air DIY air purifier perform compared to expensive air purifiers?



Thanks to kind souls who donated a BlueAir 203/270E (49,500 INR), a Philips AC4072 (34,140 INR), and an IQ Air Health Pro (85,000 INR) we’ve finally been able to test the DIY against expensive brands in the same room, for the same amount of time, with the same particle counter.

To do that, Anna ran 11 overnight tests with the BlueAir, 9 tests with the Philips, and 11 tests with the IQ Air. Thomas calculated effectiveness as percent reduction in particulates from the room air. Anna tested the air before she turned on the air filter, and then set the particle counter to take hourly measurements of the air in her 15 m2 Beijing bedroom. Anna used the highest setting on each filter.



All of the filters significantly reduced particulates, but the 7,000 INR Cannon removed as many particles as the highest-performing big brand. Even the 3,950 INR Original was only 6% behind the Blue Air on the 0.5 micron particles and 4% behind on the 2.5 micron particles.

Among the different brands, there seems to be no relationship between price and particulate removal:

Conclusion: You can remove particulate pollution from the air in your home and pay far less than the cost of a Blue Air, Philips, or IQAir.



For fellow nerds, here are more details on our data and methods:

Methods: Anna turned the purifier on the highest setting before she went to bed at night and turned it off after she woke up. To measure particulates, she used a Dylos particle counter, which measures particles 0.5 microns and above and 2.5 microns and above per 0.01 cubic foot. The particle counter took one measurement each hour.

Calculating Effectiveness: Thomas calculated effectiveness as the percentage of particles the purifier removed from the room air. The baseline was the particle count before turning on the purifier. The final count was the average number of particles over the last four hours before Anna woke up. We prefer this over comparisons to outside air because:

1. Indoor air is cleaner than outdoor air, even without a purifier (although that doesn’t mean it’s safe).

2. The baseline room number takes into account how dirty the outdoor air is because indoor particulates go up and down with outside air.

However, the drawback is that outdoor particulates sometimes go up after the test starts (lowering estimates of effectiveness) and sometimes go down (raising estimates). However, these average out over multiple tests, and the results are similar if you look only at days where outdoor particulates were relatively stable.

Room: Anna’s bedroom is 15 m2, located in Chaoyangmen, Beijing. The doors and windows were closed while Anna slept, but she opened the door at various times in the very beginning of the test before she went to sleep. Although the doors and windows were closed, the apartment isn’t new, and the seal isn’t great.

For more details on the methods, see the end of Thomas’s earlier post. All methods were identical to those earlier tests.

Machines: We tested an IQ Air Health Pro (8,000 RMB), Blue Air 203/270E (3,600 RMB), Philips AC4072 (3,000 RMB), Smart Air Original, and Cannon (Taobao).

Filter Life: After all the tests were done, the IQ Air said the pre-filter had 1,931 hours of use left, the carbon filter had 3,077 hours, and the HEPA had 1,910 hours. Thus, the filter was in its prime.

Data: Raw data for the Cannon, Blue Air, and Philips are in Thomas’s previous post. Raw data for the IQ Air tests are below.

Outlier: Of the 11 tests, one day was a strong outlier. On May 22nd, the IQ Air got only 68% of the .5 micron particles. Normally when we see poor results, it’s because the outdoor air got a lot dirtier during the night. But on May 22nd, the outdoor concentration fluctuated between 74 and 110 micrograms, which isn’t out of the ordinary.

Because we couldn’t see any reason the results were poor that night, we left the data in. If we redo the analysis with that day not included, the results are only slightly better: 93.0% of .5 micron particles and 96.5% of the 2.5 micron particles. That would put the IQ Air about equal with the Philips and still 4% below the Cannon.









Have any questions about testing? Send us an email!
We’re not PhDs in fluid dynamics, but we love to talk shop about clean air.

Which DIY purifier is right for me?

The Original DIY

The Cannon DIY

Suited for 150 sq-ft rooms

Up to 300 sq-ft rooms

H13 HEPA Filter with a pre-filter

H13 HEPA Filter with a pre-filter

Rs 3,950

Rs 7,000

Original Cannon

The Cannon Cleans Faster

(Based on 0.5 micron particulate. Get the full story here.)

Original Cannon

Quieter, smaller

For larger spaces and anyone wanting clean air fast

Order Order




What about custom projects and business?

Getting clean air needs a fan and a filter. We specialise in scaling up this simple solution for custom projects both large and small. Learn more about our clean air custom projects.

India industrial air pollution HVAC systemIndustry

India schools and university air pollution HVAC systemSchools

India office and business air pollution HVAC systemOffices

Delhi residential air purifier solutionResidential

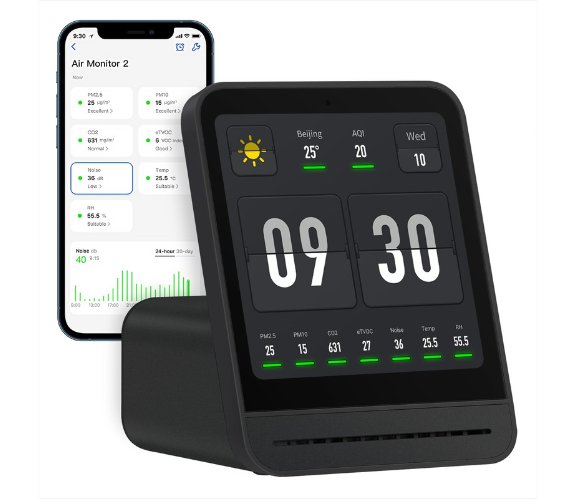

Know your air

We tested air quality monitors against the gold standard, and these two made the cut. Here’s why.

<!–


Number of clean breaths delivered in India:
0



Nerdy details about the calculation

–>


Deliveries in Delhi/NCR take 3 – 4 days, rest of India 6 – 8 days. You can always pick up your order same day from our workspace in Lado Sarai.



Need clean air in your office, school, or industrial space? Get in touch or ask for a quote.


Smart Air in the news




NDTV Gadgets

“A social enterprise built around an ethos of frugal innovation called Smart Air is disrupting the air purifier space in India with a DIY kit priced at Rs. 3,399, almost half the China price of the Xiaomi Mi Air Purifier 2.”

Read more.

Your Story

“The Delhi-based startup Smart Air Filters produces an indoor air purifier that is highly effective against PM 2.5, the primary air pollutant affecting urban Indian cities.”

Read more.

Wall Street Journal

“Smart Air’s do-it-yourself filters are available for 3,399 rupees – a fraction of the cost of conventional models on the market. This rudimentary invention is making air purifiers no longer a luxury for the rich.”

Read more.

CNN Money

“Customers drop by the shop to pick up orders, many of them clearly relieved to be getting a filter for their home or office. Their purifier is a very simple answer to a complicated problem.”

Read more.




Smart Air on NDTV Unboxed




Independent head-to-head tests on Gadjet Guru




Organizations that use Smart Air purifiers








Smart Air India Introduction and Demo



[youtube https://www.youtube.com/watch?v=dmlisgR3YsA]

(Can’t see the video? Watch it on YouTube).







What is PM2.5, and why is it scary?



PM2.5 are tiny particles in the air that reduce visibility and cause the air to appear hazy when levels are elevated. They are any particles 2.5 micrometers (microns) or smaller.

PM2.5 particles like this can penetrate deep into our lungs–some can even directly enter our bloodstream. In the long term, PM2.5 causes heart attacks, stroke, cancer, and lung problems like emphysema. In the short term, studies have shown that breathing in PM2.5 raises blood pressure, lowers heart rate variability, lowers lung function, increases blood inflammation, and causes our blood vessels to constrict. Studies have even found that PM2.5 lowers work productivity and affects our mood.






How can you prevent PM2.5 from damaging your body?

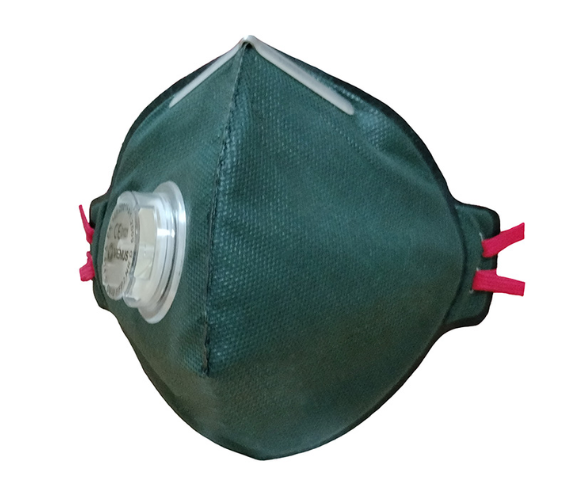

The best and long-term solution would be to control air pollution from cars, factories, and power plants. But until that happens, we can protect ourselves by reducing air pollution in our homes and wearing simple, empirically backed masks outside. The scientific data on masks is clear: masks work. The data on HEPA purifiers is also clear: HEPA purifiers significantly reduce particulate pollution. Good, randomized studies have even found that wearing masks and using purifiers can reduce effects of air pollution on blood pressure, blood inflammation, and constriction of blood vessels.
